Stop Pipeline Failures: Get Your IFC Pipe Stress Analysis Report RIGHT (USA & Global)

The Core Problem: Why Stresses Don’t Tell the Whole Story

You already know pipe stress analysis is critical. It’s the engine check for your piping system, evaluating its ability to handle loads:

• Sustained Loads: The weight of the pipe, fluid, and pressure.
• Expansion Loads: The movement (thermal growth) when the system heats up.
• Occasional Loads: Wind, shock, or that ever-present seismic activity.

But here is what often gets missed: the analysis is only as good as the instructions for building it. If your pipe stress analysis report and documentation service doesn’t flow directly into a buildable design, you still have a problem.

From Code Compliance to Construction: Our 3-Part IFC Solution

Our IFC Pipe Stress Analysis Reporting sub-service is structured to eliminate the gap between engineering theory and field reality. We are delivering more than just a pass/fail sheet; we provide the pipe stress analysis support design BOQ package—a single source of truth for your entire project in places like Houston, London, Abu Dhabi, or Dubai.

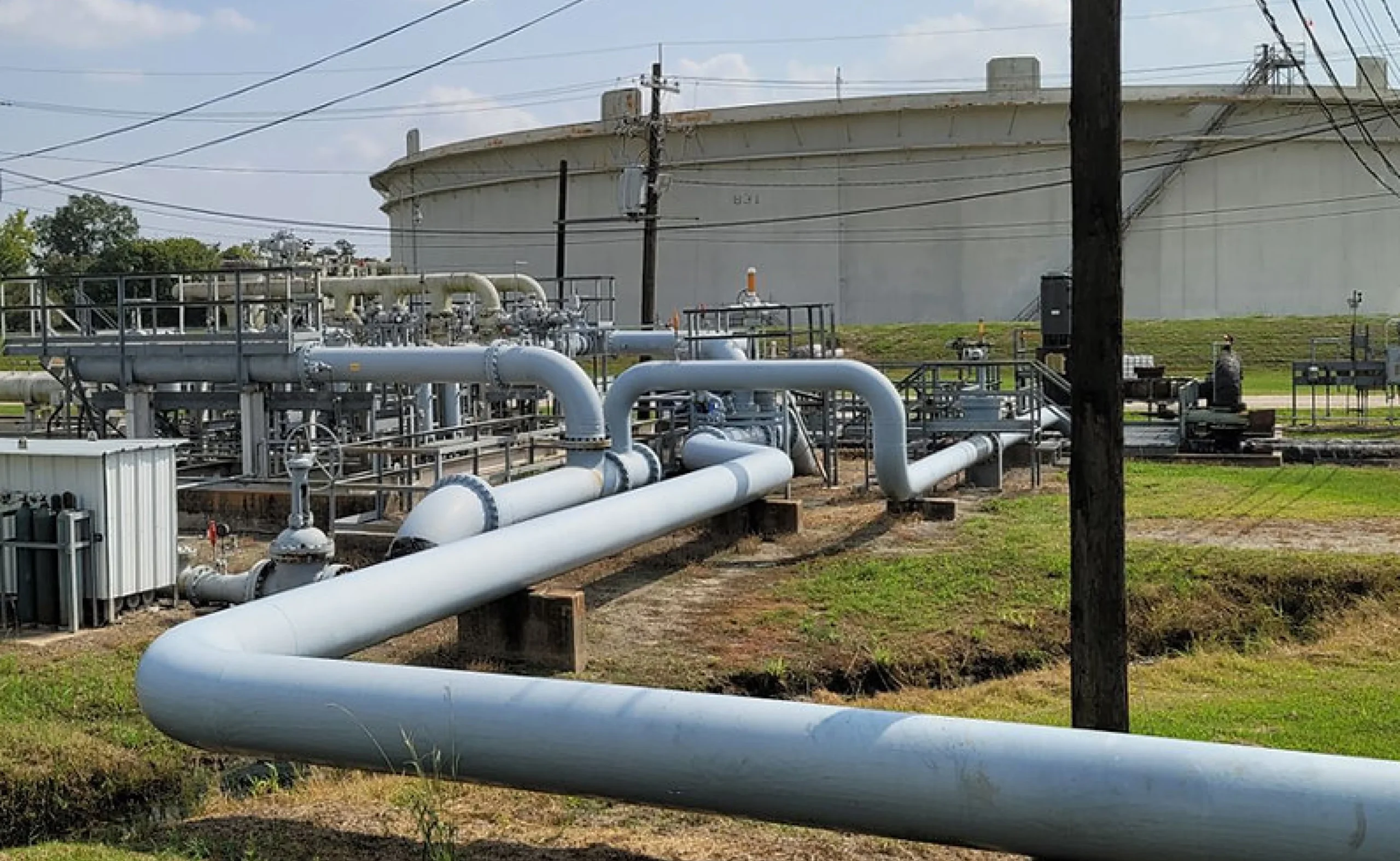

The Full Pipe Stress Analysis Report

This is the undeniable fact that your system is secure and scalable. We carry out both static and dynamic tests with the industry-leading software, such as CAESAR II and AutoPIPE, which will allow the code to be compliant with the standards relevant to your area (ASME B31.3 in the US, usually EN/BS standards in the UK/EU).

Key Deliverable: It should be a clear, concise report, which includes load cases, input data, stress summaries (longitudinal, bending, hoop), and, more importantly, the verification of equipment nozzle loads against vendor limits (such as API 610/650). This report is your format of piping stress analysis report, IFC deliverables service.

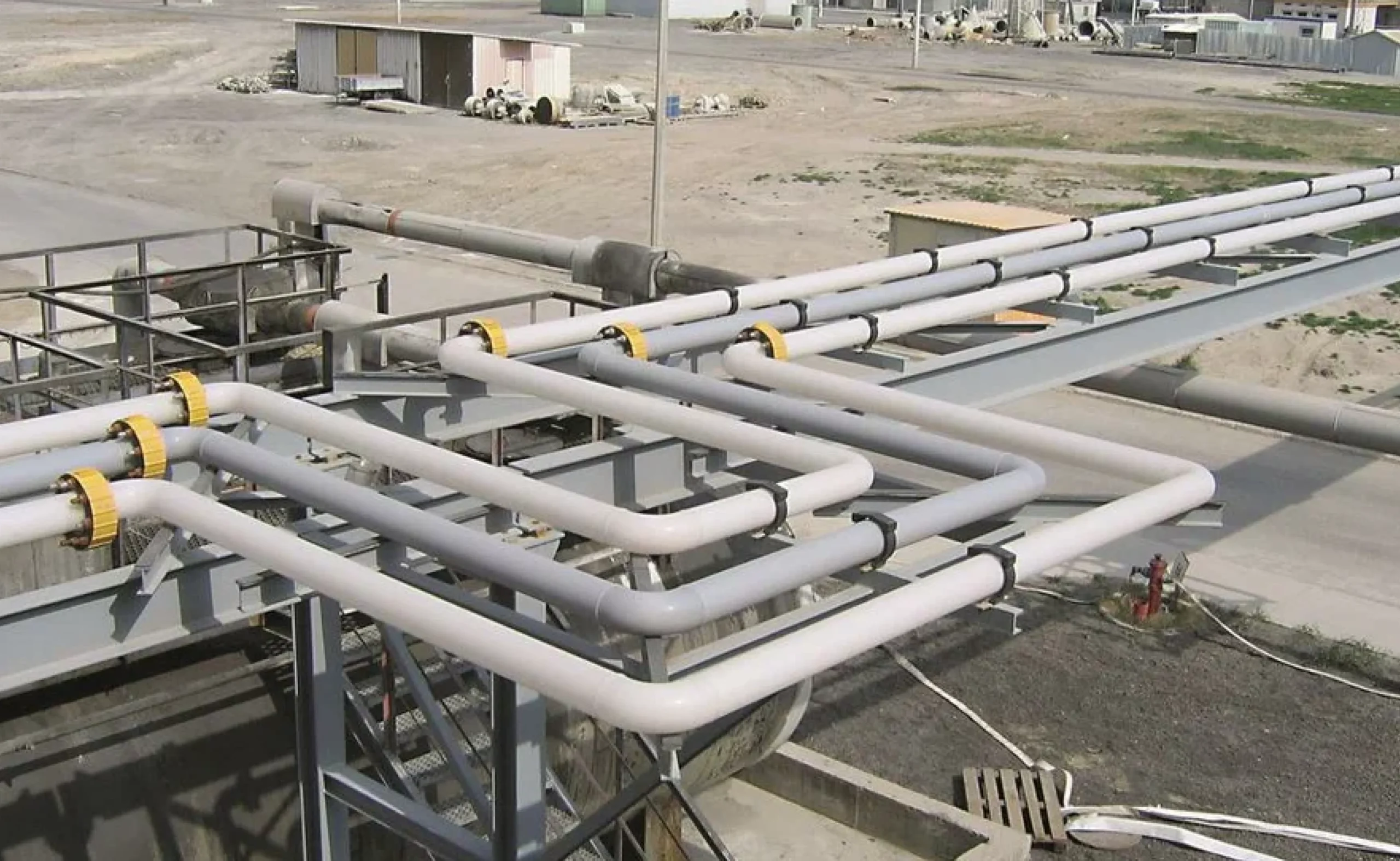

Smart Support Designing and Positioning

A BOQ piping stress package and a great pipe support design report are where the money is saved and safety is locked in. We would prepare the specific hanger, guide, and anchor designs that would control the movement of the pipes as calculated. We are not simply placing the supports; we are modeling their stiffness and placing them on top of the 3D model, so that the supports do not clash and reduce large redundant forces.

The BOQ: Procurement’s Secret Weapon

The BOQ (Bill of Quantities) is the commercial output, a quantified list that your procurement team can use immediately. For us, this is the sign of a complete pipe stress analysis deliverable engineering service. It translates engineering data into materials:

• Itemized List: Every clamp, rod, hanger, snubber, and anchor bolt.
• Specifications: Material, finish, and load rating for each component.
• Installation Notes: Ensure the support is installed correctly the first time.

This delivers the final, essential piping stress report and BOQ support design service for projects ranging from complex pipe stress analysis reports, oil & gas piping, to general pipe stress report preparation, and industrial piping.
